Dear Ladies and Gentlemen
back in May, we presented our powerful LightGuide Area Lights to you. These lights of the LUMIMAX® series LGxxxx-V02 and LGCBxxxx-V02 can be used for various industrial applications thanks to the compact housing design, the efficient controller and LightGuide technology as well as the highly flexible cable outlet.

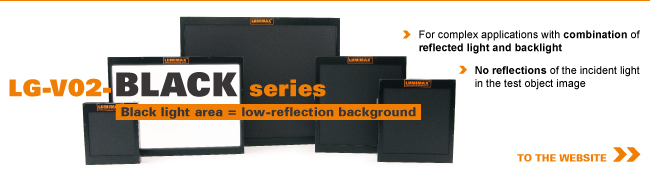

With this newsletter edition, we are introducing the new BLACK variants of the LG-V02 series, which is now available in all illumination colours and sizes of this series.
These new diffuse lights have a light area, which is diffuse black when the light is switched off and therefore it can be used as a low-reflection background.
The special coating of the diffusor absorbs a large part of the incident light. Hotspots, e. g. from single LEDs of a ring light (reflected light), are not visible in the camera image.
If the lights are switched on, they offer the usual homogeneous, diffuse, but still very bright lighting.
Therefore, these lights are ideally suited for complex Machine Vision applications that require a combination of reflected light and backlight within a single checking station. For example, the contours of objects in a transparent packaging can first be checked using the BLACK backlight. The print image on the label can then be examined by means of incident light, with disturbing reflections being eliminated by the black background.
All information about the BLACK series of our LG Area Lights you can find here:
To our new LG-V02-BLACK series

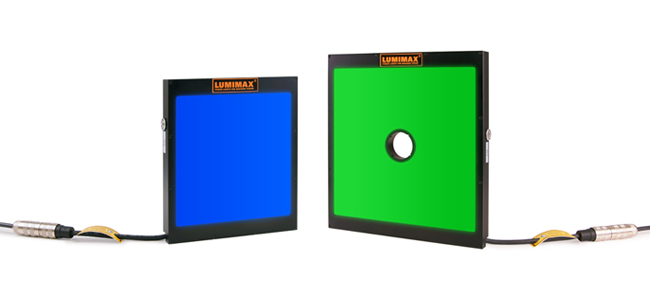

LG-V02 series in the illumination colours green and blue
In addition to the BLACK variants, all sizes of the LG-V02 and LGCB-V02 series are now available in the illumination colours green and blue. Also polarising filters, which can emphasize or suppress reflections on test objects, are purchasable.
