Dear Ladies and Gentlemen,

For a stable and reproducible analysis of Machine Vision applications, an optimum lighting situation is critical. A range of accessory components allow flexible adjustment of the light direction to the most diverse requirements.
Lens kits, diffusers and fresnel lenses enable individual adjustment of the lighting to the working distance and object field.

Linsenwechsel beim Balkenlicht LB125

Today, we would like to introduce you to our lens kits and the lens exchange option that comes with them, and provide you with a handy tool for calculating the optimal illumination area for your applications.

Since the lenses in front of the LEDs can be swapped out in LUMIMAX® High Power LED Lighting, the lighting setup can be adjusted to meet a broad range of requirements:

  • Lighting with a tight beam angle: bright illumination of objects from several meters away
  • Lighting with a broad beam angle: homogeneous lighting even at shorter distances, while also providing high-intensity lighting for larger objects

LUMIMAX® product configuration in 4 easy steps

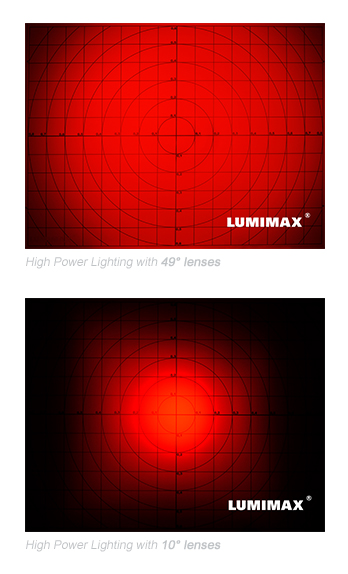

Comparison between 10 ° and 49 ° lenses

Comparison between 10 ° and 49 ° lenses



Flexible LUMIMAX® High Power LED Lighting


All LUMIMAX® High Power LED Lights have the lens exchange option.

For large working distances and strongly absorbent objects, High Power LED Lighting is especially suitable. Very high intensity LEDs, combined with integrated controller and performance electronics guarantee luminous intensities of well over 1 million lux in flash operation and offer excellent lighting for the objects under inspection – even at a working distance of several metres. Extraneous light sources are suppressed.

The Lens Kits are available for the following product series:




Calculate the optimal illumination area for your application easily and simply with the help of our practical tool:

  To the free calculation tool

Special feature of our high performance LED Spot 5W

The LUMIMAX® High Power Spot 5W has an adjustable precision optics. This allows a very flexible adjustment of the radiation characteristic to the required working distances and image fields, enabling a focused or very homogeneous illumination of the object to be inspected.
Furthermore, with the C-Mount connector - available as an accessory - lenses for focusing can be used.


We hope you enjoy testing our product configurator!
Do you have any questions or suggestions?
Please reply to this email or call us at +49 (0)3681 / 455 19-0.



  Contact to the LUMIMAX Team

Best regards
Your LUMIMAX® Team
