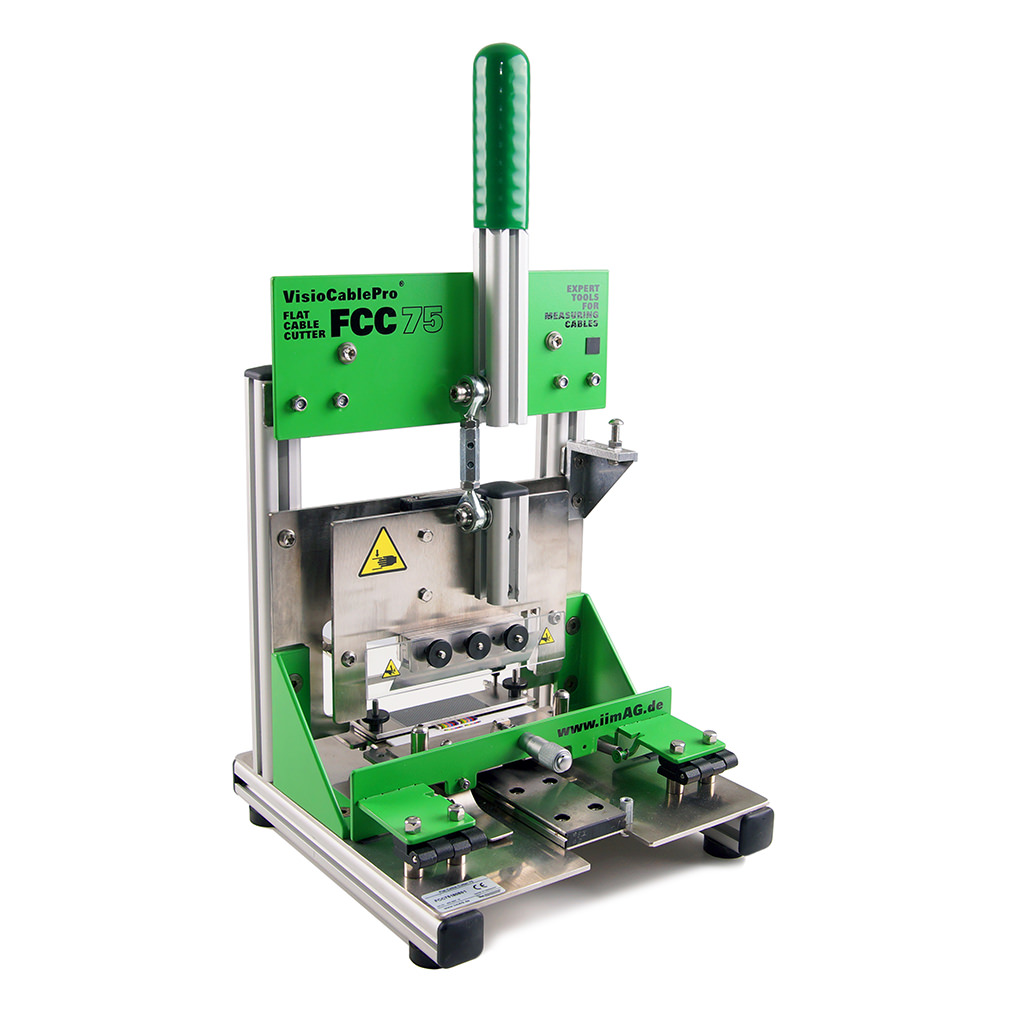

VisioCablePro® - Flat Cable Cutter FCC75
Device for sample preparation of flat cables
With the Flat Cable Cutter FCC75 it is really easy and efficient to cut sample slices (cable sheath cutter) up to a width of max. 75 mm (2.95") and a height of max. 8mm (0.31").
Click here to go directly to the product page: FCC 75
VisioCablePro® - Cable O-Ring Cutter 150
Cutting device for large cable samples according to IEC 60811
With the ORC 150 it is really easy and quick to cut sample slices (cable sheath cutter) with an outer diameter from 20 to 150 mm (0.78 - 5.9").
Click here to go directly to the product page: ORC 150
PRODUCT UPDATE
VisioCutter ORC VC100
Sample preparation of hard materials up to 100 mm (3.94")
With the ORC VC100 it is really easy and quick to cut sample slices of hard materials (PE, XLPE) with an outer diameter from 8 to 100 mm (<3.94").
Click here to go directly to the product page: ORC VC100
PRODUCT UPDATE
VisioCutter ORC VC65
Cutting Tool for fast sample preparation according IEC 60811
With the ORC VC65 it is really easy and quick to cut sample slices of a wide variety of materials with an outer diameter from 1 to 65 mm (<2.56").
Click here to go directly to the product page: ORC VC65
VisioCablePro® - Cable O-Ring Cutter Micro
Sample cutting device for very small samples according to IEC 60811
With the ORC Micro it is really easy and quick to cut very small samples up to 3.5 mm (0.14“) outer diameter depending on material and wall thickness.
Click here to go directly to the product page: ORC Micro

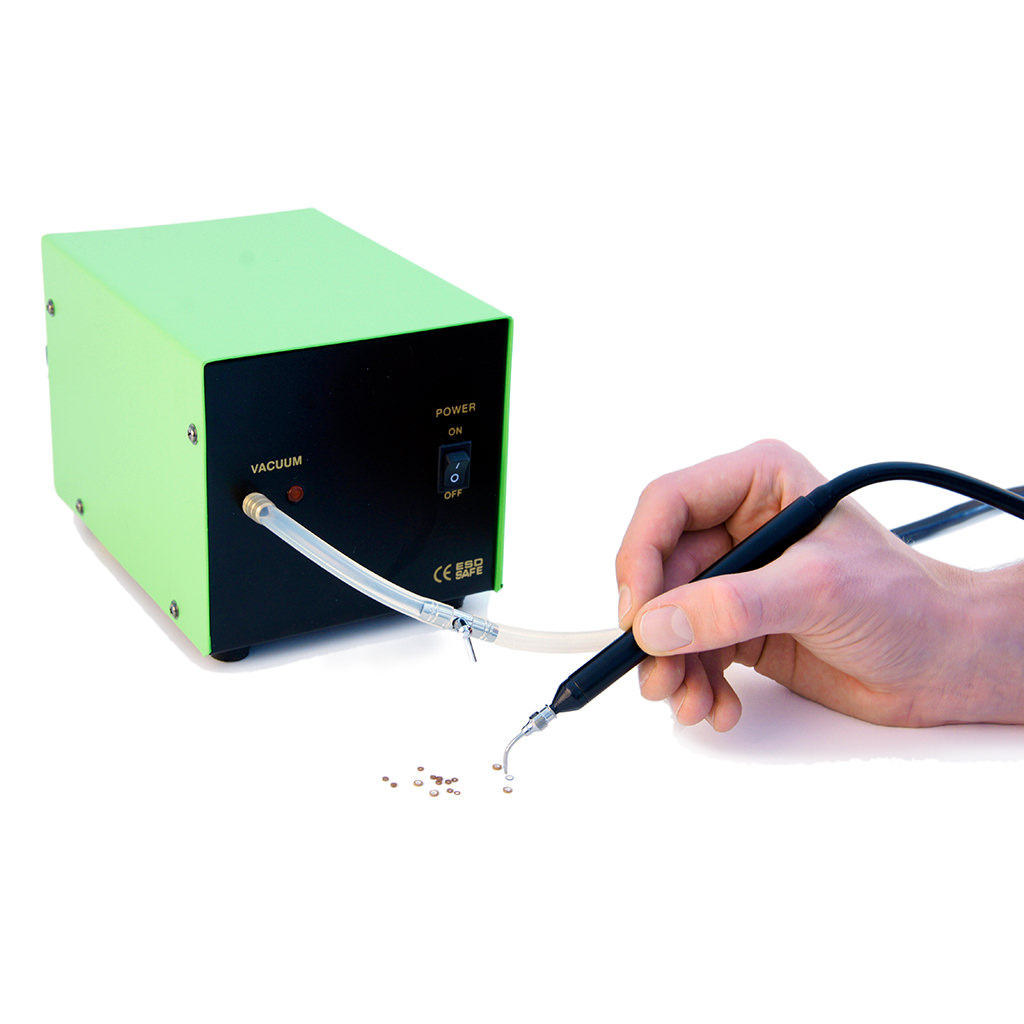

VisioCablePro® - Sample Picker
Easy positioning of small samples
With the sample picker it is possible to precisely position smallest cable samples. It is ideally suited in conjunction with the cable measuring device VCPLab and the ORC Micro
Click here to go directly to the product page: Sample Picker
VisioCablePro® - Cable Stripper CS100
For separating cable jackets/ -insulations from the electrical conductor
The CS100 enables easy separation of cable sheaths and the electrical conductors. It is especially suitable for cable samples with a high strip force.
Click here to go directly to the product page: CS100

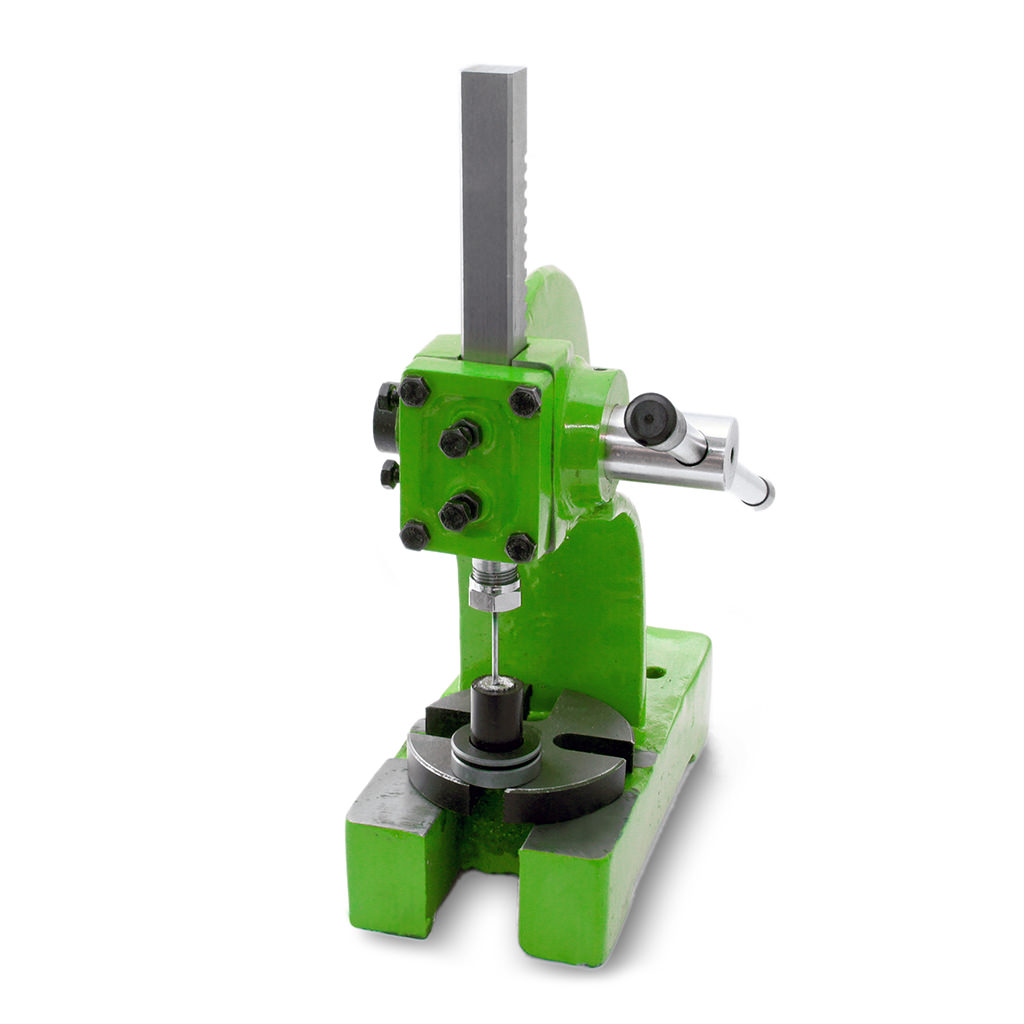

VisioCablePro® - Core Removal Punch CRP
Punch to remove solid electrical conductors
The CRP punch is especially suitable for the manual removal of solid electrical conductors with a with solid core cross-sections.
Click here to go directly to the product page: Punch CRP
VisioCablePro® Cable measuring device VCPLab
For cable samples with an outer diameter up to max. 48 mm (1.89")
The cable measuring device VCPLab is a camera-based system for measuring cable geometries from insulations and sheaths. Integrated high resolution sensors allow very accurate measurements of both very thin samples with an outer diameter smaller than 1 mm (0.04") and cable sheaths with an outer diameter up to max. 48 mm (1.89") .
Click here to go directly to the product page: VCPLab
VisioCablePro® Cable measuring device VCPX5
For measuring cable samples with an outer diameter up to 130 mm (5.11")
The VCPX5 is designed for geometrical measurements for core insulations and cable sheaths. With its robust construction and easy application the VCPX5 is suitable for quick and most accurate measurements in cable production.
Click here to go directly to the product page: VCPX5
VisioCablePro® Measuring Device for Extrusion Tools VCPEx+
Stand-alone system for high-precision and fast measurement of wire guides and mouthpieces
The VCPEx+ is a camera-based system for measurement of wire guides and mouthpieces mean that only tools tested independently of users are used in production. It is specially designed for use in production, the tool store and the laboratory.
Click here to go directly to the product page: VCPEx+
VisioCablePro® Twist/ Lay/ Pitch Length Detector - TLD
For measuring the twist/ lay/ pitch length of sheathed cables
The measurements are according to the standards LV212 and LV122 without removing the sheath.
Click here to go directly to the product page: TLD
VisioCablePro® Splitting Cutter SC-PE
Sample preparation for heat elongation and tensile tests according to standards especially for hard materials
The SC-PE is developed to slice samples according to IEC 60811 with a thickness between 0.8 and 2.0 mm (0.04" – 0.08").
Click here to go directly to the product page: SC-PE
VisioCablePro® Splitting Cutter SC
Cable sample preparation for heat elongation and tensile tests according to standards especially for soft materials
The SC is developed to slice samples according to IEC 60811 with a thickness between 0.8 and 2.0 mm (0.04" – 0.08")
Click here to go directly to the product page: SC

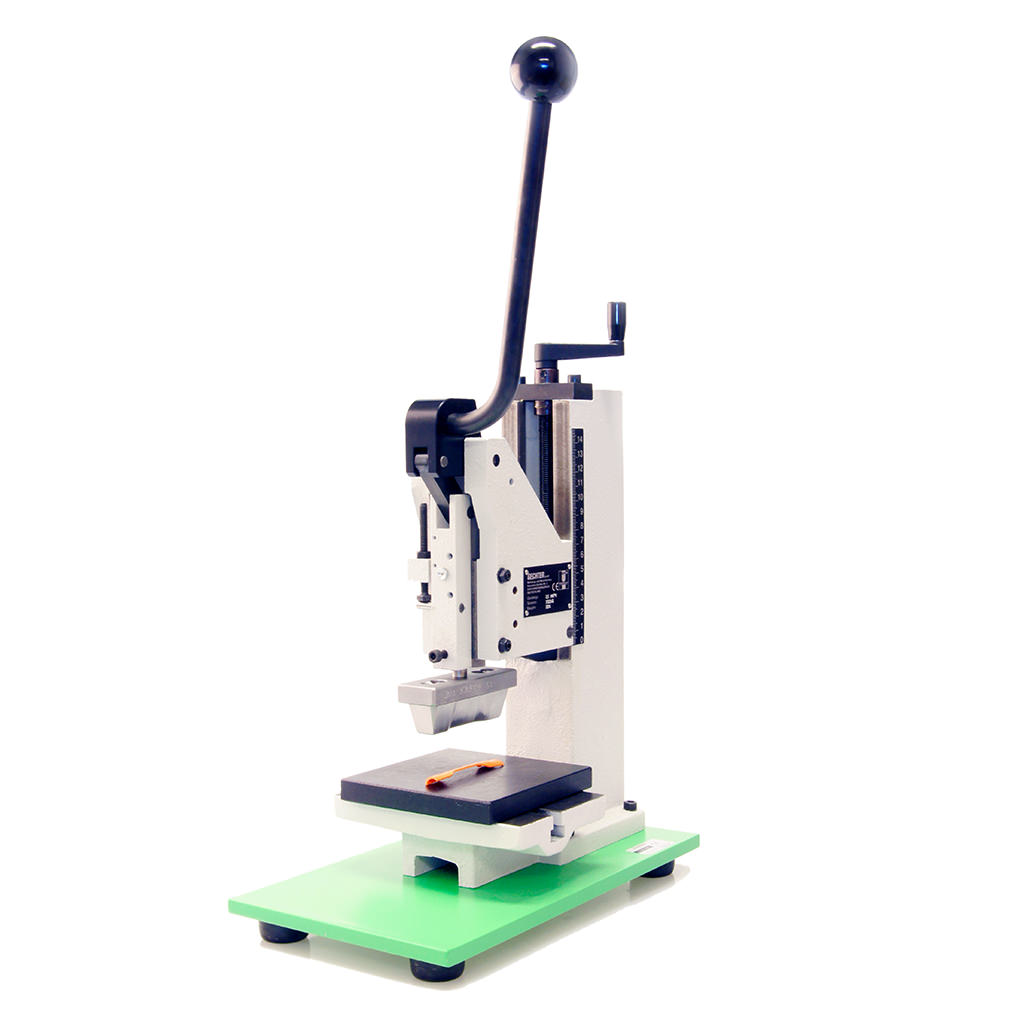

VisioCablePro® Toggle Press KHP
For punching dumb-bell test specimen for further tests (e.g. Hot Set Test )
With the toggle press a sample preparation according to IEC 60811 -501, -507 is possible. Available with either 100mm (3.93"), 75 mm (2.95") or 50 mm (2.97") dumb-bell tools.
Click here to go directly to the product page: KHP

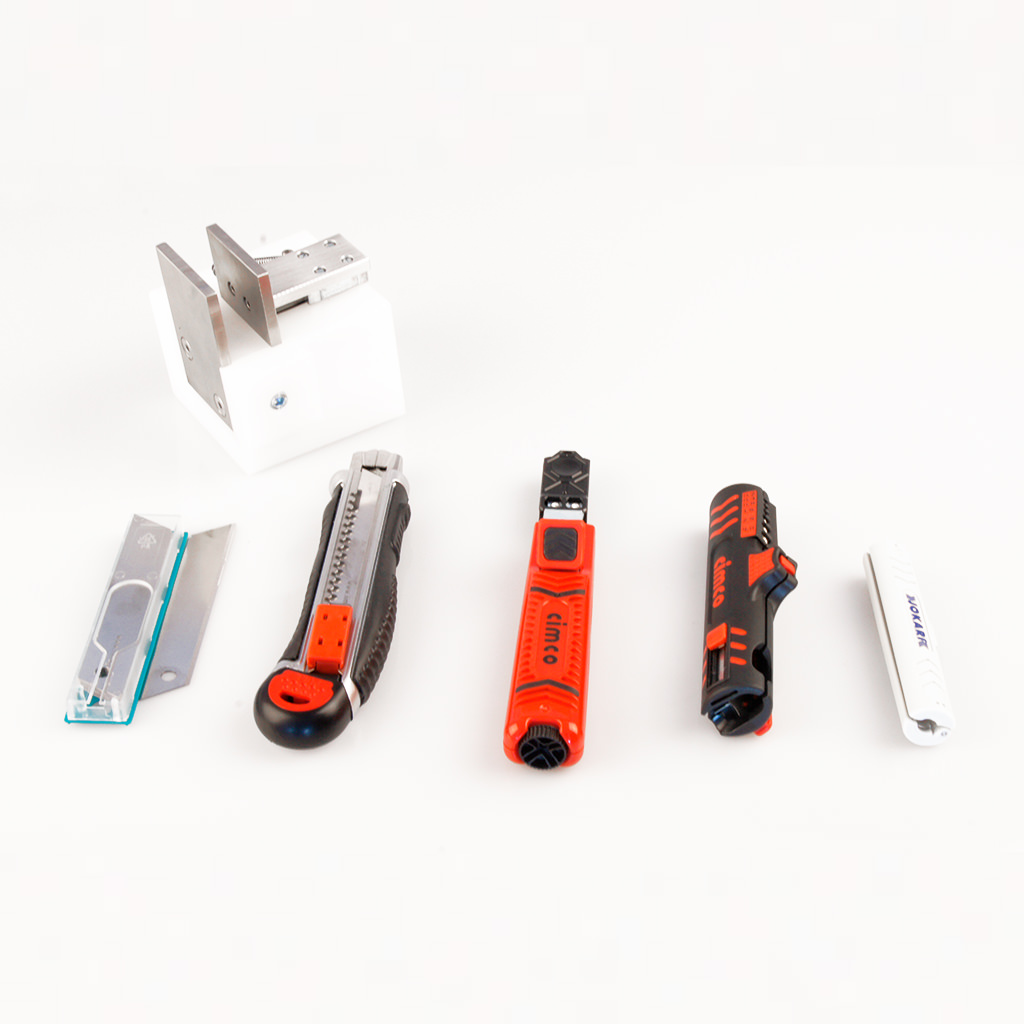

VisioCablePro® Tool Box
Practical Tool Box with tools for cable sample preparation
With the VisioCablePro® Tool Box you will receive important tools for a simple and quick sample preparation, e.g. a cutting block, cutting knife, special blades and cable strippers.
Click here to go directly to the product page: Tool Box
VisioCablePro® Hot Set Test
Hot Set Test and Heat Pressure Test
The Hot Set Test enables measurements according to the standards IEC 60811 -507 (Hot Set Test) and IEC 60811 -508 (Heat Pressure Test) regarding sample attachment and weight attachment. Simultaneous measurement of up to 3 samples are possible.
Click here to go directly to the product page: Hot Set Test
VisioCablePro® Cold Impact Test - CIT
Device for an impact test at low temperature
The Cold Impact Test corresponds in construction and operation the standard IEC 60811-506 (IEC 60811-1-4) point 8.5. Up to 3 Samples can be tested simultaneously.
Click here to go directly to the product page: CIT
VisioCablePro® Cold Bend Test CBT
Device for Cold Bend Test at low temperature
The Cold Bend Test corresponds in construction and operation the standard IEC 60811-506. The test is suitable for positioning in a cold chamber with a double floor (optionally available).
Click here to go directly to the product page: CBT
