Measuring Device for Extrusion Tools VCPEx+ Stand

Technical details:

Size (WxLxH) 400 x 460 x 630 mm
15.75 x 18.11 x 24.80 Inch

Weight 15 kg / 33.1 lbs
Supply Voltage 100 - 230 V / 50 - 60 Hz
Input Power max. 100 Watt
Resolution corresponds to 0.1% of the image field
Lighting homogeneous lighting by LUMIMAX®
Camera one measurement area,
configurable

Measuring range up to 35 mm (1.37“) hole diameter


Stand-alone device for high-precision and fast measurement of large wire guides and nosepieces

The VCPEx+ Stand is a camera-based system for measuring large wire guides and dies. Thanks to this measuring device, only tools that have been tested independently of the operator are used in production. The VCPEx+ tripod is specially designed for use in production, in tool issuing and in the laboratory.



Ensure your product quality right from the beginning - even before the production process.



Possible measurement results:

  • Maximum, minimum and average inside diameter
    (With these values any deformation or wear can be identified - the wires could be positioned undefined in the cable after extrusion which can lead to an underranged wall thickness.)

Device details

  • Measuring device for large extrusion tools up to 35 mm (1.37“) hole diameter
  • Automated measurement process
  • Focus indicator allows you to easily adjust the focus
  • Homogeneous transmitted light illumination - made by iiM AG - for the ideal presentation of the area to measured
  • The influence of the user is reduced to a minimum
  • Robust, ergonomic design
  • Ideal addition to the 2-camera system VCPEx+

Optional

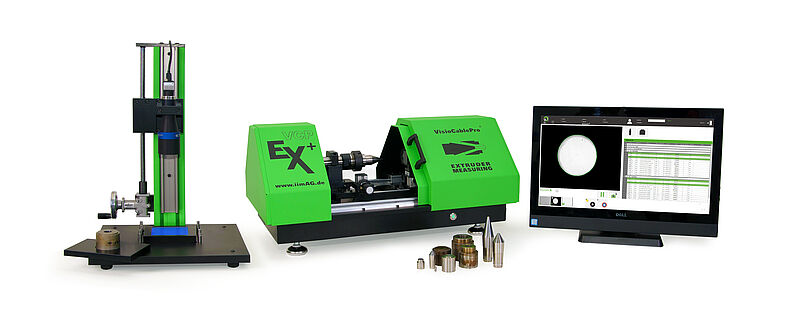

VCPEx+ inclusive VCPEx+ Stand and All-In-One Windows PC
