Hot Set Test

Art.-No.: 401.0009.03

Pictures may differ from the original.

Detalles técnicos:
Dimensiones (A x L x A)	Dispositivo: 200 x 170 x 315 mm Estuche de accesorios: 375 x 290 x 70 mm Laser 210 x 230 x 540 mm
Peso	Device: 2.3 kg \| 5.1 lbs Equipment: 3.0 kg \| 6.6 lbs Laser: 6.4 kg \| 14.1 lbs
Material	Aluminio Acero inoxidable Caja de PVC
Referencia estándar	según la norma IEC 60811-507, -508

Hot Set Test & Heat Pressure Test

2 in 1: device contains the Hot Set Test as well as the Heat Pressure Test

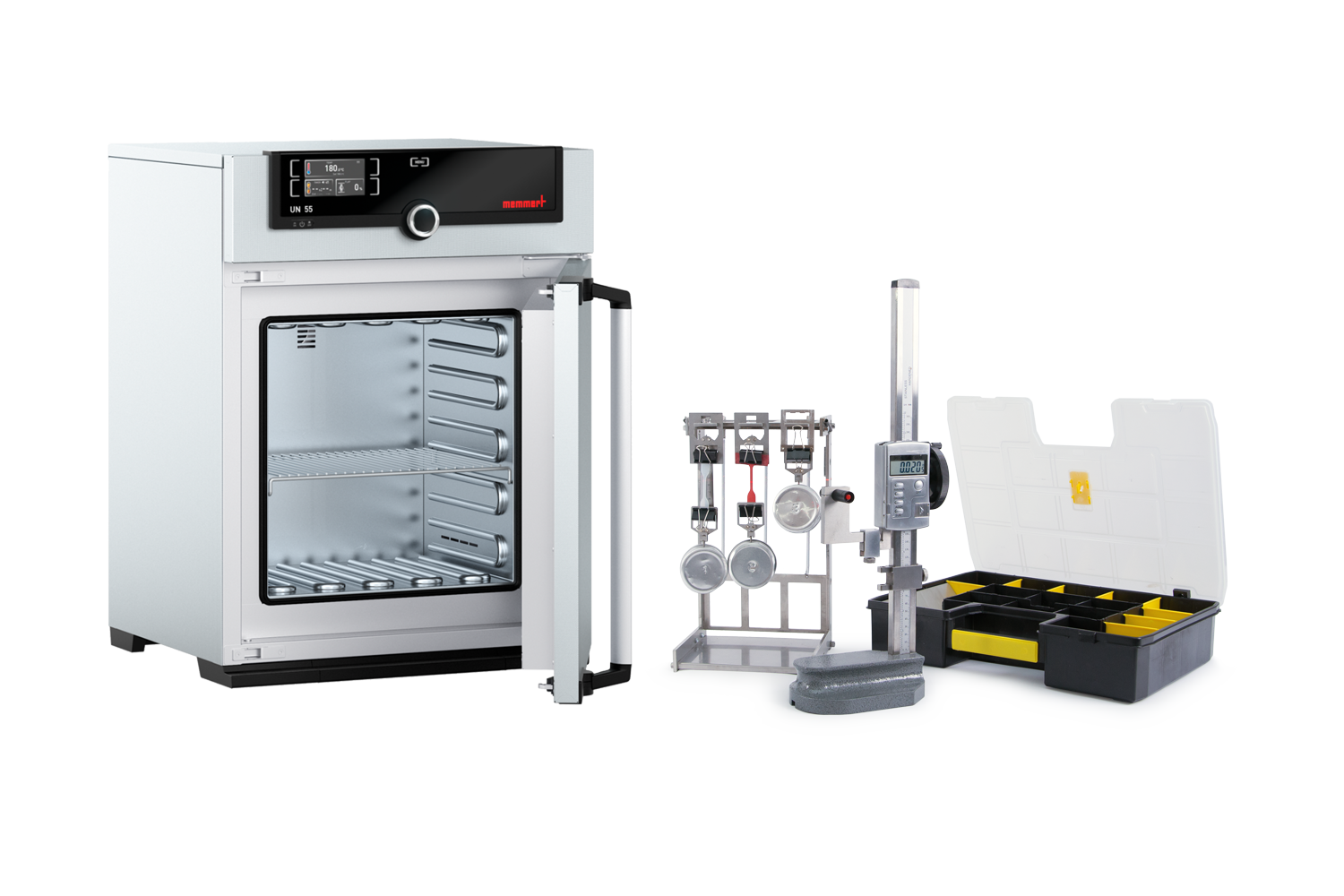

Robust and compact set including the device and an equipment case
Possibility to attach a thermometer directly near the sample
Measurement according to the cable standards IEC 60811 -507 (Hot Set Test) and IEC 60811 -508 (Heat Pressure Test) regarding sample attachment and weight attachment
Precise choice of weights due to practical containers
Simultaneous measurement of up to 3 cable or tube samples

Sample rack for heat pressure and heat elongation test - Product No.: 401.0009.03
Laser gauge - Product No.: 405.0009.01
Thermal heat oven UN55 - Product No.: 405.0009.02
Size (WxLxH): 585 x 514 x 784 mm (23 x 20.2 x 30.9“)
Weight: 57 kg (125.6 lbs)
Volume: 53 l
Air exchange rate: 8-20x
Thermal heat oven UN110 - Product No.: 405.0009.06
Size (WxLxH): 745 x 584 x 864 mm (29 x 23 x 34“)
Weight: 74 kg (163 lbs)
Volume: 108 l
Air exchange rate: 8 - 20x
