TARGETED SELECTION OF THE WAVELENGTH FOR MAXIMUM CONTRAST WITH COLOURED OBJECTS
TARGETED SELECTION OF THE WAVELENGTH FOR MAXIMUM CONTRAST WITH COLOURED OBJECTS
- Importance of wavelength selection:
Particularly crucial when working with colored objects and surfaces - Ideal combination with monochrome cameras:
The right light color significantly improves the efficiency of machine vision systems - Contrast increase without filter:
Increasing the image contrast in the test image – even without the use of optical or software filters - Principle of color reflection:

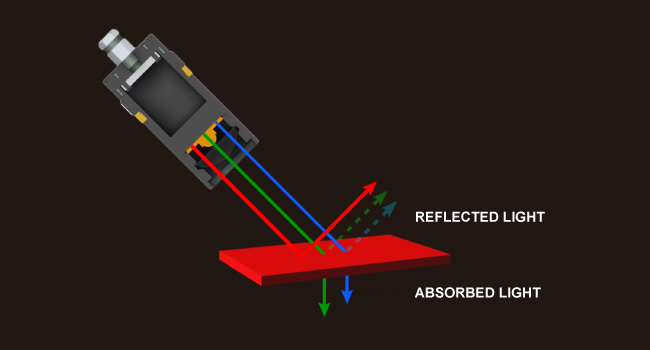

Objects reflect specific wavelengths that make them appear colored
Example: Red objects reflect red light; other wavelengths are absorbed
- Lighting effect on the B/W image of the monochrome camera:
Red test part with red light = bright in the B/W image
Red test part without red component in the light = dark in the B/W image - Use of complementary contrast:
Strongest contrast effect when illuminated with a color complementary to the object color
Examples:
Yellow object with blue lighting = black
Yellow object with red or green lighting = bright
SHORT COLOUR REFLECTION DEMO VIDEO
In the following video, Linda Mueller shows you briefly and clearly what effects different colored lighting have on the result of the test image:
SHORT COLOUR REFLECTION DEMO VIDEO
In the following video, Linda Mueller shows you briefly and clearly what effects different colored lighting have on the result of the test image:
APPLICATION AREAS IN PRACTICE
APPLICATION AREAS IN PRACTICE
There are various areas of application for colored lighting in industrial image processing. Here are some examples:
- Optimised print image control in the packaging industry
- Simplified assembly of colored plastic parts
- Improving object recognition in pick & place tasks
Would you like to optimise your Machine Vision application with the right light colour?
Or would you like more detailed information on the topic of “Light & Colour”?
