AlphaOne

Art.-No.: 401.0030.03
Produktbild 4
Pictures may differ from the original.
Technical details:
Size (W x L x H)450 x 400 x 720 mm
17.72 x 15.75 x 28.35 Inch
Weight25 kg
55.12 lbs
Supply Voltage100 - 240 V
50 - 60 Hz
Input Powermax. 100 Watts
Resolutioncorresponds to 0.1% of the image field
LightingLED
Camera*customised 1 Camera, high resolution
Measuring rangeup to max. 95 mm (3.74“) outer diameter
Measuring according to standardsIEC 60811-201; -202; -203
LV112 (A Factor)
ICEA S-94-649
Datasheet
Datasheet


For measuring cable & hose samples with an outer diameter up to 95 mm (3.74“)


The new AlphaOne - the combination of precision and flexibility. With the compact and simultaneously highly precise measuring device for cross section measurements of cables and hoses, you receive new possibilities in your quality assurance process


Area of Application


  • Highly precise measuring device for cross section measurements of cables and hoses
  • Measuring device especially designed for use in a production line

Device details


  • Specific object size - depending on the production line
  • Quick and very easy measurement
  • Little training required
  • Measuring software VELOX included
  • Compatible with all database software of the VCP family
  • Various external CAQ software are connectable
  • Low operator influence due to fixed focusing as well as preset illumination
  • Robust design and simple, user-friendly operation
  • Shock and vibration resistant due to an optimised sensor arrangement and balanced weight distribution
  • Measuring software enables various operator level settings (production, laboratory, administrator, service, etc.)
  • Standardised individual components lead to supply security and therefore a short delivery period
  • Easy connection with external devices

Optional

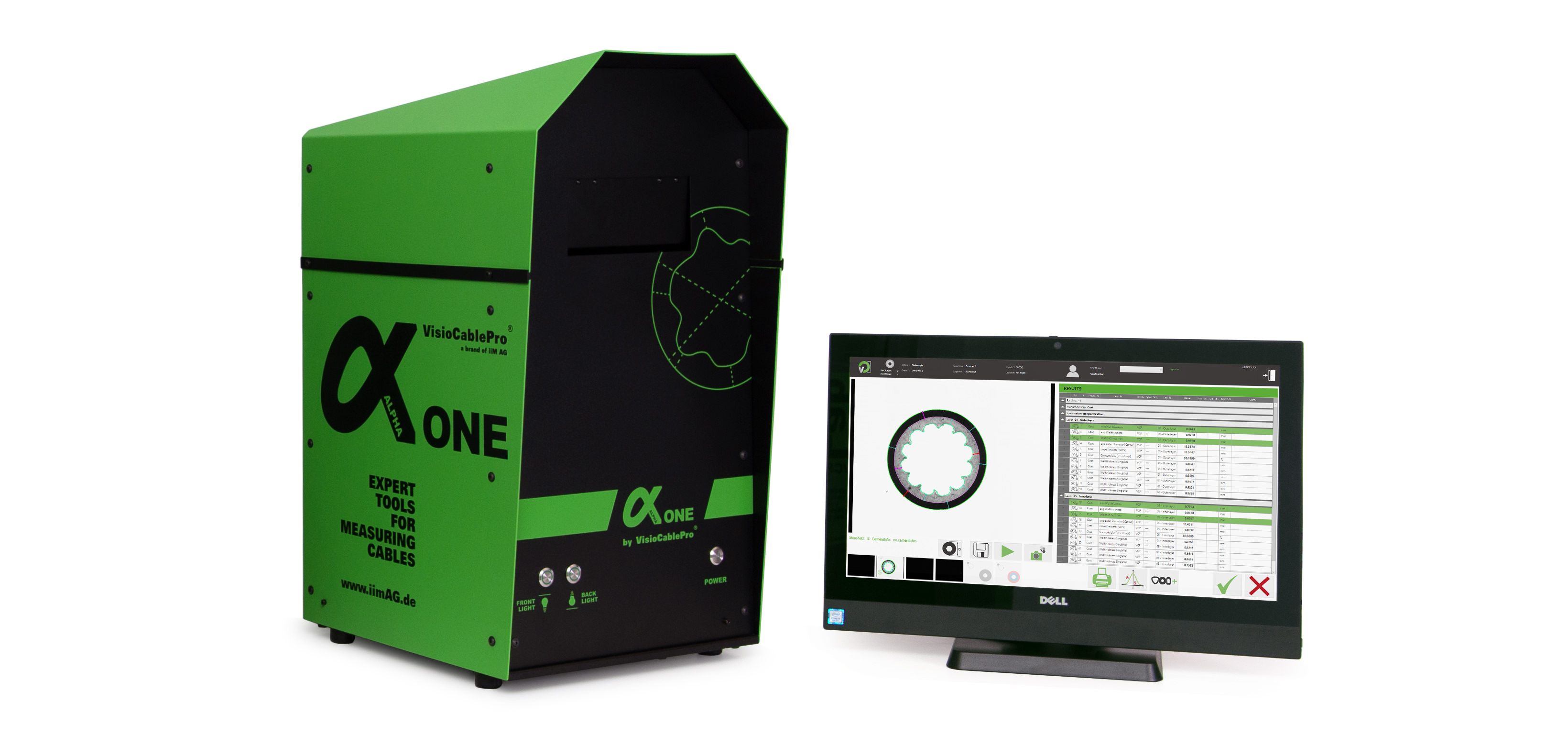

AlphaOne inclusive All-In-One Windows PC




* die am Besten geeignete Konfiguration kann nur mit Angabe der minimalen und maximalen Außendurchmesser Ihrer Proben ermittelt werden


Accessories

Below you will find suitable additional devices for your cable measuring device.
